عجلة مشط التبن Walvoil DPX100 أربعة أقسام 2 فولت / 24 فولت معوضة بعد لـ آلات البناء

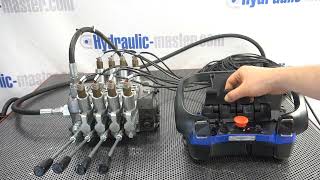

Walvoil DPX 100 12/24 V hydraulic valve with 4 proportional sections, open/closed center, and additional levers. The valve features a post-compensation section.

This valve is configured for the most common machine setups and supports up to 4 standard crane functions. If you need a different custom configuration, we can tailor it to your requirements, including variations in coils, voltage, number of sections, anti-shock valves, connections, etc.

We offer technical support and are always available via email, WhatsApp, and phone.

If you have any questions or need assistance, please feel free to contact us at - or -.

After placing your order, flow and pressure can be fully adjusted to meet the customer’s specific requirements for the machine.

---------------------------------------------------------------------------------------------------- ------------------------------------------------------------

Walvoil DPX 100 Hydraulic Section Valve with Compensation, Fully Proportional

Technical Specifications of the Standard Configuration:

Inlet section: 32 GPM 120 l/min – Pmax 300 bar 4351 psi Power supply connection: 3/4“ BPS, tank return connection: 3/4” BPS

1. Swing movement – Horizontal movement of the crane: 40 L/min, 10 GPM (A+B closed); electrohydraulic control on both sides with AMP-JPT or Deutsch connectors and a hand lever

2. Main lift: 60 L/min, 21 GPM (A+B closed); electrohydraulic control on both sides with AMP-JPT or Deutsch connectors and a hand lever

3. Boom – Horizontal boom extending from the crane, 40 L/min, 10 GPM, A+B closed, electrohydraulic control on both sides with AMP-JPT or Deutsch connectors and a hand lever

4. Rotator: 20 L/min, 5 GPM, A+B closed; electrohydraulic control on both sides with AMP-JPT or Deutsch connectors and a hand lever


Outlet section: with the option to combine valves, including a relief valve (LS relief) and a pressure-reducing valve.

Control connection “V” and waste water connection “L” sealed. Side connections “T1,” “P1,” “LS1” sealed. DBV permanently installed and sealed to 175 bar at 90 l/min.


The valve is compatible with cranes from Palfinger, Hiab, Palms, Kesla, Fassi, Liebherr, etc.
