حفارة الخنادق Ditch-Witch H932

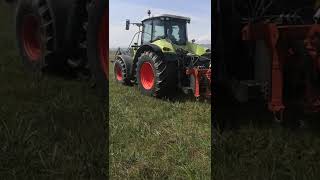

Ditch Witch H932 + Claas Axion 820 Cmatic

For sale: a Ditch Witch H932 vibrating plow attachment mounted on a Claas Axion 820 Cmatic tractor, with the option to customize the package.

Available options:
-Ditch Witch H932 (manufactured in 2016) + Claas Axion 820 Cmatic (manufactured in 2011)
-Ditch Witch CT120H (manufactured in 2019) + Claas Axion 820 Cmatic (manufactured in 2011)

The following items are also available for sale separately:
- Ditch Witch H932
- Ditch Witch CT120H
- Claas Axion 820 Cmatic

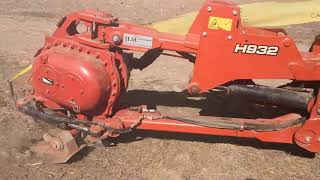

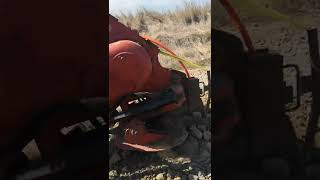

The Ditch Witch H932 is a vibrating plow used to lay cables or small-diameter pipes underground to a maximum depth of 1.5 m without the need for excavation or trenching.

The Ditch Witch CT120H is a trenching attachment capable of digging trenches up to a maximum depth of 2.8 m and a width of 0.6 m.

The Claas Axion 820 is a 4WD agricultural tractor equipped with a 6.8L inline 6-cylinder John Deere engine that delivers approximately 200 CP and 850 Nm, paired with a ZF-manufactured Cmatic CVT transmission that allows for travel at a maximum speed of 50 km/h.

Technical specifications for the Ditch Witch H932:
-Maximum penetration depth: 1.5 m
-Departure angle: 23 degrees
-Weight without blade: 1,100 kg
-Attachment length without blade: 1.7 m

CT120H Technical Specifications:
-Departure angle: 30 degrees
-Maximum trench depth: 2.8 m
-Maximum trench width: 0.610 m
-Transport height: 3.251 m
-Transport length: 3.048 m
-Weight: 794 kg

Claas Axion Technical Specifications:
-Rated power: 200 CP
-Maximum torque: 850 Nm
-Maximum speed: 50 km/h
-Minimum speed: 0.05 km/h
-Displacement: 6,788 cm³
-Number of valves per cylinder: 4
-Hydraulic pump flow rate: 110 L/min
-Maximum hydraulic system pressure: 200 bar
-Maximum rear lift capacity: 9,500 kg
-Rear PTO speed: 540/1,000 rpm
-Curb weight: 7,390 kg
-Maximum authorized weight: 12,000 kg

We ship anywhere in the world!

Garden Logistic we offer a wide range of equipment and attachments; we invite you to visit our profile to explore them.
